Project Computer Vision – 3D Box Detection

Motivation

In this exercise, we acquire a brightness image (424×512), a depth image (424×512) and a 3D point cloud matrix (424x512x3) from Microsoft kinect camera.  From the datasets stated above, we are asked to estimate the dimension of the object that lies in the center of the scene.

Visualization of the raw data

RANSAC floor plane fitting

Relation between camera and point cloud

Fitting top plane and refining of potential  region

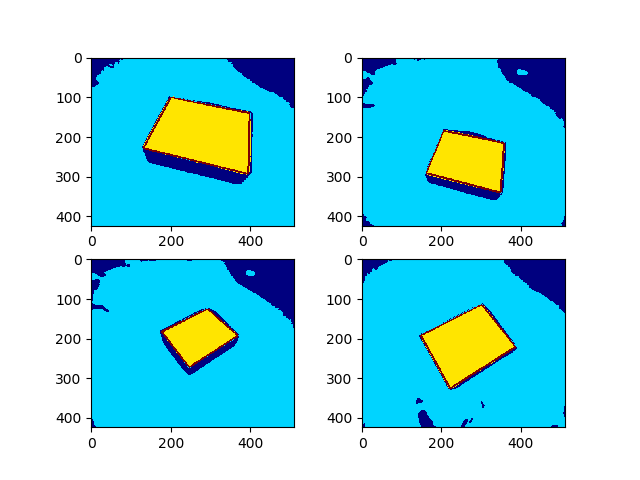

Excluding the invalid set of 3D point cloud and floor plane segmentation from above, there is large, well connected region in center of the image. However,  if we apply RANSAC algorithm again to fit the top plane of the box, some regions which are near to the image boundary are often falsely regarded as “top plane”, so that we apply flood-fill algorithm to mark the only region in the middle.

def floodfill_topplane(topPlaneImg):
    """
    apply floodfill algorithm to define more concise top plane
    Input:
    topPlaneImg(array(bool)): top plane image after RANSAC plane fitting
    Return:
    returnImg(array(bool))
    """
    (height,width) = topPlaneImg.shape
    returnImg = np.zeros(topPlaneImg.shape,dtype=np.int64)
    maskIndices = np.arange(height*width).reshape(height,width)
    validSet = maskIndices[topPlaneImg.astype(bool)]
    # retrieve the median "pixel"
    idx = np.floor(validSet.size/2).astype(int)
    x = validSet[idx]%width
    y = np.floor(validSet[idx]/width).astype(int)
    mask = skimage.morphology.flood(np.int64(topPlaneImg),(y,x),connectivity=2)
    returnImg[mask] = 1
    return returnImg.astype(bool)

Sorting the result of corner detector

The output of corner detector is sorted w.r.t. “cornerness” which is used to specify potential corner candidates in the corner detector, however, if we draw the edges of the box directly with the order of the output of the corner detector, it is not guaranteed that we can generate a convex polygon. As a consequence, we compute the azimuth of 4 corners w.r.t. the geometric center of these and sort it  in an ascending order which denotes that the range of angle lies within -π to π and the direction of rotation is counter clockwise.

def sort_corners(corners):
    """
    sort corners' azimuth in counter clockwise order (3rd->4th->1st->2nd quadrant)
    w.r.t geometric center(mean value of 4 vertices) of the box
    Input:
    corners(array(int)): output(ndarray) of corner detection
    Return:
    returnMatx(array(int))
    """
    returnMatx = np.zeros(corners.shape,dtype=np.int64)
    ### check Quadrant
    centroid = np.mean(corners,axis=0)
    vector = corners - centroid
    angle = np.arctan2(vector[:,0],vector[:,1])
    ind = np.argsort(angle)
    for i in range(ind.size):
        returnMatx[i,:] = corners[ind[i],:]
    return returnMatx

Box dimension estimation

Hardware

So far as we know, we can find out that the object is a DHL packet box size L
https://www.dhl.de/en/privatkunden/pakete-versenden/pakete-abgeben/verpacken.html

The execution time for both top plane and floor plane RANSAC plane fitting is about 7 seconds.
